MACH3 WAGNER

Manual air-assisted airless high pressure spray gun, compatible with aircap and nozzle WAGNER. Designed to improve the application and quality, can be installed to our pumps, and it is suitable for spraying applications in the metal and wood finishing industry.


berizzi-MACH3-Wagner
CODE  DESCRIPTION
TT1001W  Mach3 gun + filter holder + nozzle WGM + air cap WGM

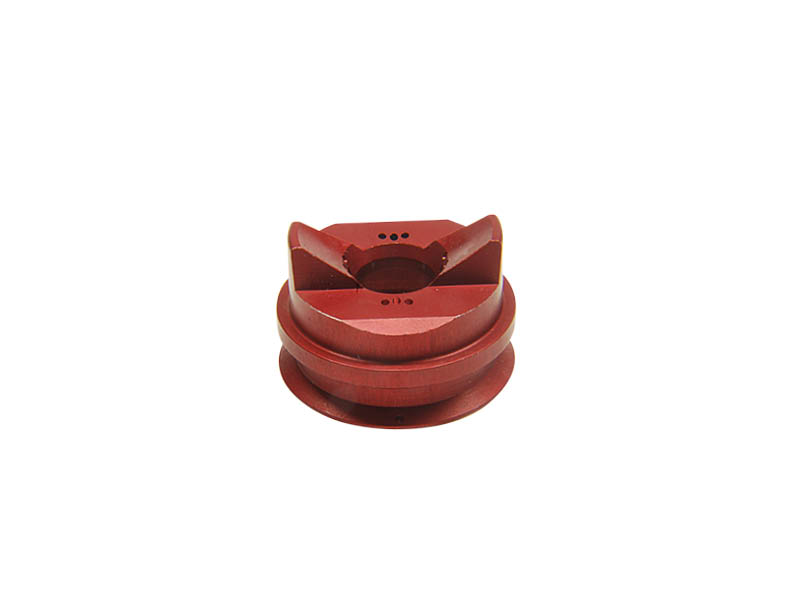

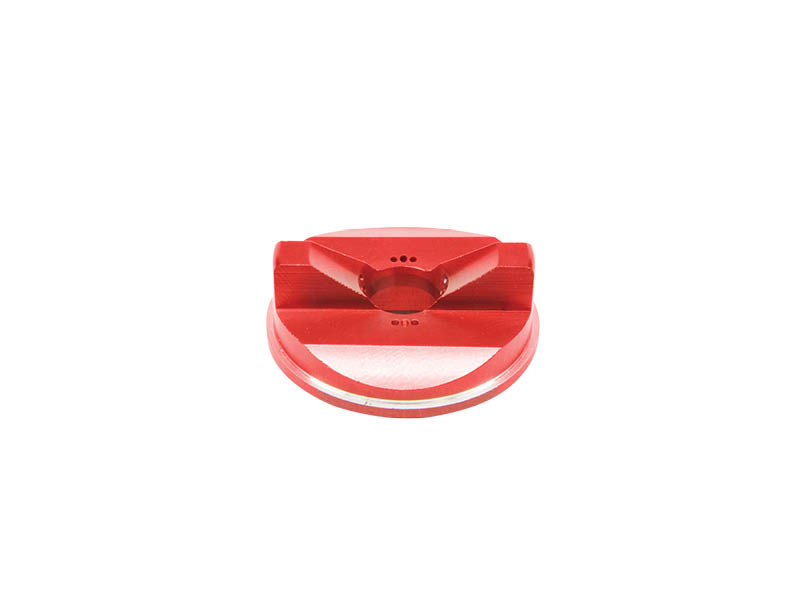

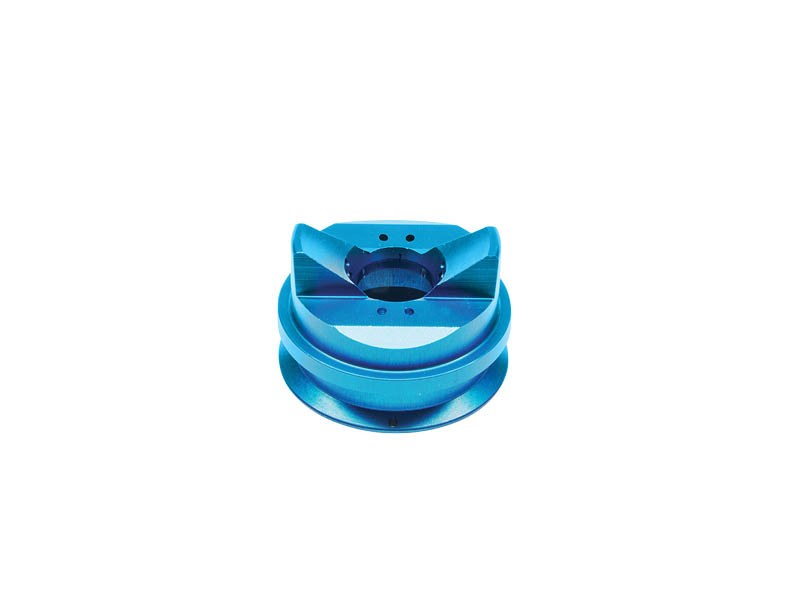

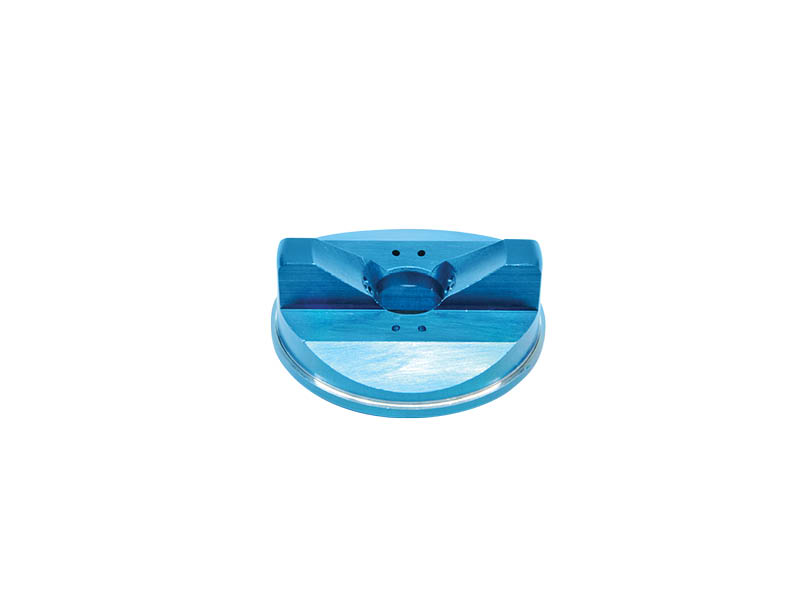

TT1MIXW  Air cap for nozzle type Mix Wagner
WGMXXXX  Nozzle Mix type Wagner

Technical specifications

Maximum Working Fluid Pressure:  200 bar, 20 MPa (2900 psi)
Maximum Working Air Pressur:  7 bar, 0,7 MPa (100 psi)
Maximum Working Fluid Temperature:   43°C
Fluid Inlet:  ¼” nps
Air Inlet: ¼” nps
Gun Weight  with filter holder:  520 gr
Gun Body:  Alluminium
Trigger Resistance: 17.35 N
Wetted Parts:  Stainless steel, carbide, PTFE

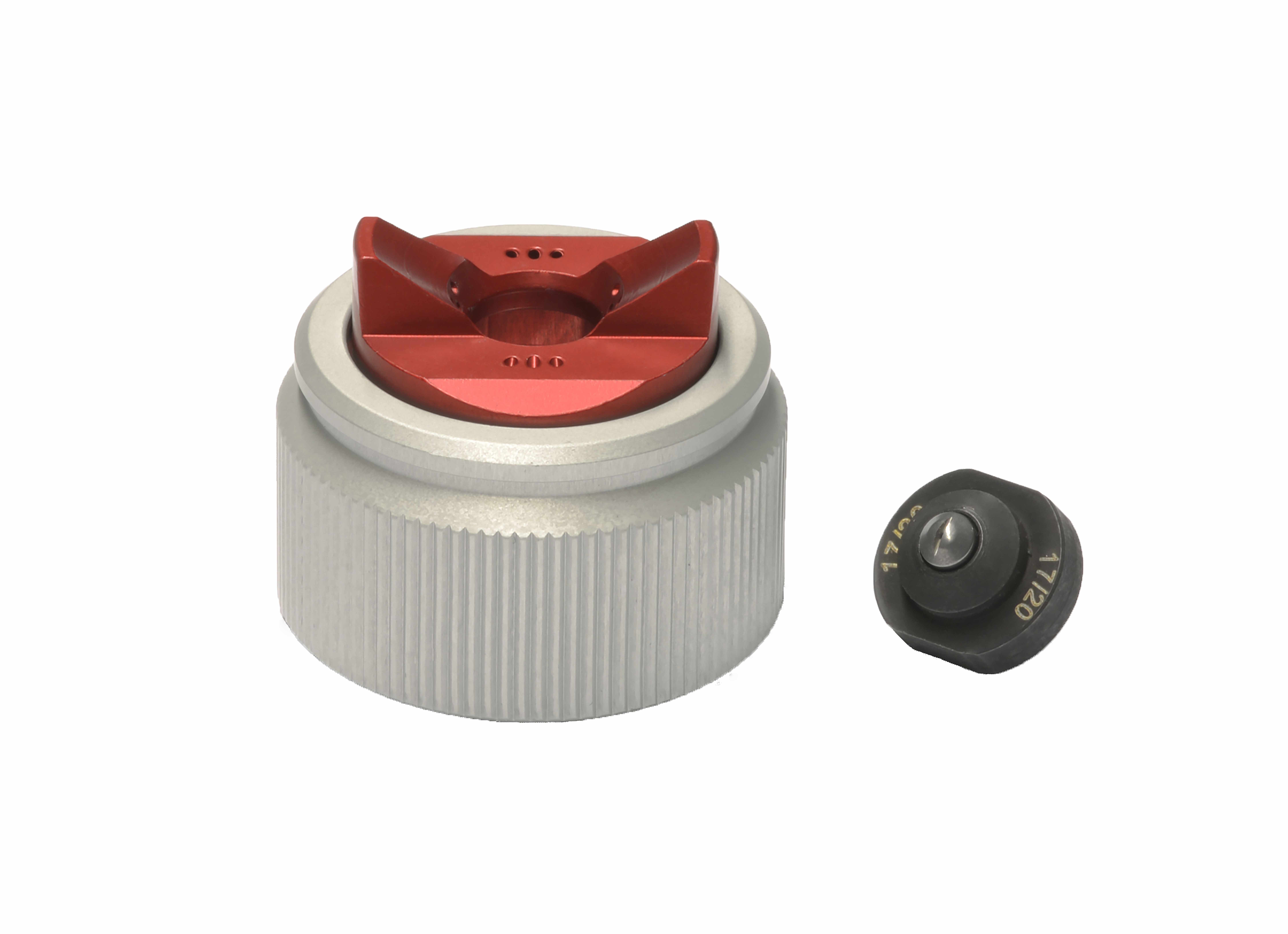

Nozzle and aircap compatible with WAGNER

berizzi-mach3-and-nozzle-wagner
