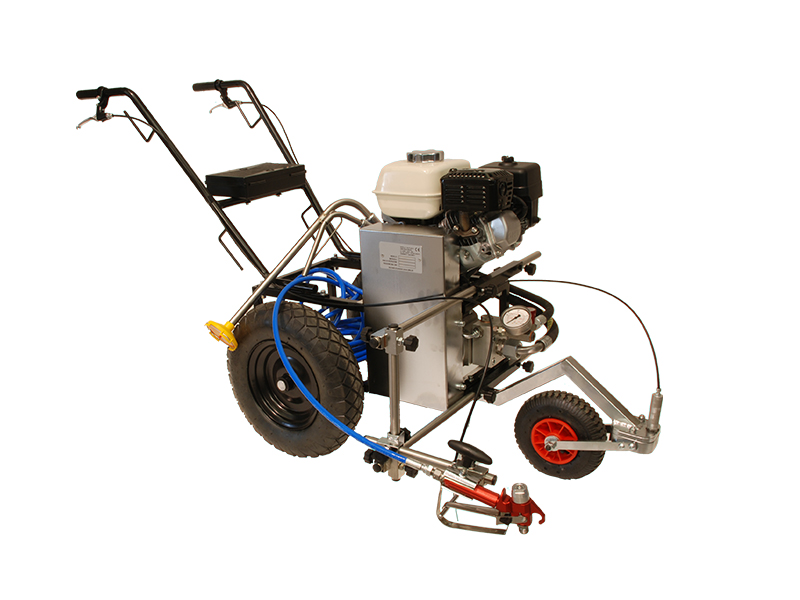

GEA 4200

Airless line marking pump

Gasoline engine operated airless line marking pump suitable to light duties line marking operations for parking lots and touch up jobs spraying medium and low viscosity road paints. GEA 4200 was designed to trace lines in road works, parking lines, industrial signs, playgrounds and bicycle lanes.
It has a directional front wheel with 5 different positions to mark straight lines or lines with two different radius measurements. Thanks to its quick gun coupling system, it is possible to remove the gun from the central trolley and use it individually for further works.

berizzi-line-marking-diaphragm-pump
CODE  DESCRIPTION
TKLA GEA 4200 Line marking airless diaphragm pump - Gas engine C/ Manometer - Hose 10m - RST1 spray gun - FM6 tip gun - Reversible FM6 tip - Complete suction system

Technical specifications

Motor:  HONDA
Power:  3,5 Hp
Max. Delivery Free Flow: ltr/min    4,0
    1 Gun     0,021
Max. Tip    2 Guns    0,013
    3 Guns    ---
Max.  Working outlet pressure:  Bar  (PSI)    200 (2900)
Max length HP hose:  mt.  60
Max length HP hose (elevation):   mt.     60

Application

The GEA pump has an autonomous gas engine which makes it light and easy to handle.
Furthermore, thanks to its quick gun coupling system, it is possible to remove the gun from the central trolley and use it individually for further works. Thanks to the directional front wheel with 5 different positions, it is possible to trace straight lines or lines with two different
radius measurements.
