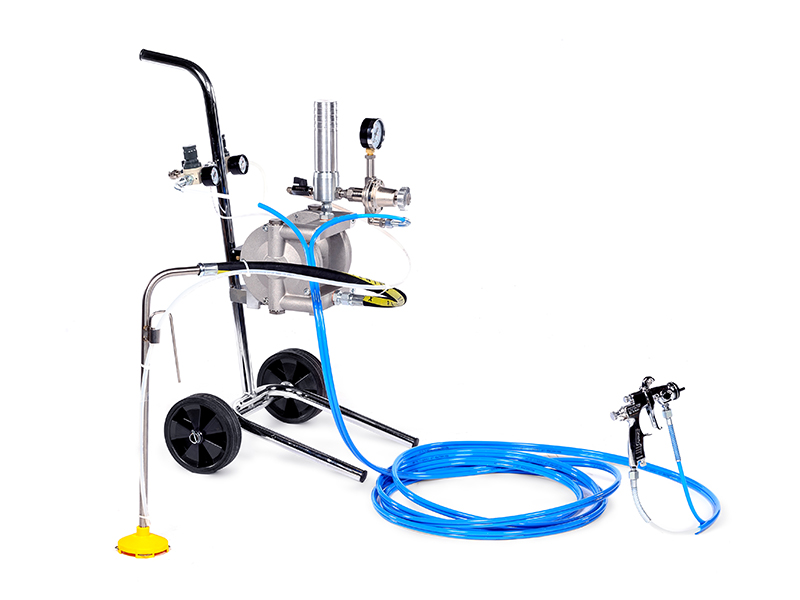

B24

Pneumatic Double Diaphragm pump

Double diaphragm pneumatic pump suitable for low-pressure air spraying with paint atomization air or low-medium viscosity fluid transfer. It can be used with enamels, lacquers, base coats and varnishes, in the wood and metal sector. Available in the plastic variant BOXER.

Berizzi-b24-double-diaphragm-pump
COD DESCRIPTION
212400 B24 fluid tranfer Double Diaphragm with Pressure Regulator

212401 B24 fluid tranfer Double Diaphragm without Pressure Regulator

212402 B24 fluid tranfer Double Diaphragm on trolley W/ Inline filter

212403 B24 fluid tranfer Double Diaphragm on trolley W/ Inline filter - Fluid regulator

212404 B24 fluid tranfer Double Diaphragm on trolley W/ Inline filter-Fluid regulator-Gun-Hose-Suction System

212405 B24 fluid tranfer Double Diaphragm on trolley W/ Inline filter-Fluid regulator-Gun-Hose-Gravity tank

TK13000 BOXER fluid tranfer Double Diaphragm with Pressure Regulator

TK13001 BOXER fluid tranfer Double Diaphragm without Pressure Regulator

212410 B24 Fluid Transfer LP Double Diaphragm fixed on Cover for tanks with 1bar Pneumatic Stirrer
W/Pressure Reducer - Inline Filter - Cover handle - Suction System with Filter

Technical specifications

Motor:    Pneumatic
Ratio:        1:1
Max. Delivery free flow:   ltr/min    24
Max.  Air inlet pressure:    Bar  (PSI)    8 (116)
Max.  Working outlet pressure:   Bar  (PSI)    8 (116)
Weight:    kg.  11
Air consumption:   ltr/min      200 - 500
Material inlet fitting size:      M 1/2”
Material outlet fitting size:    M 3/8”

Application

It can be used with enamels, lacquers, base coats and varnishes, in the wood and metal sector.

Model BOXER in plastic version.
