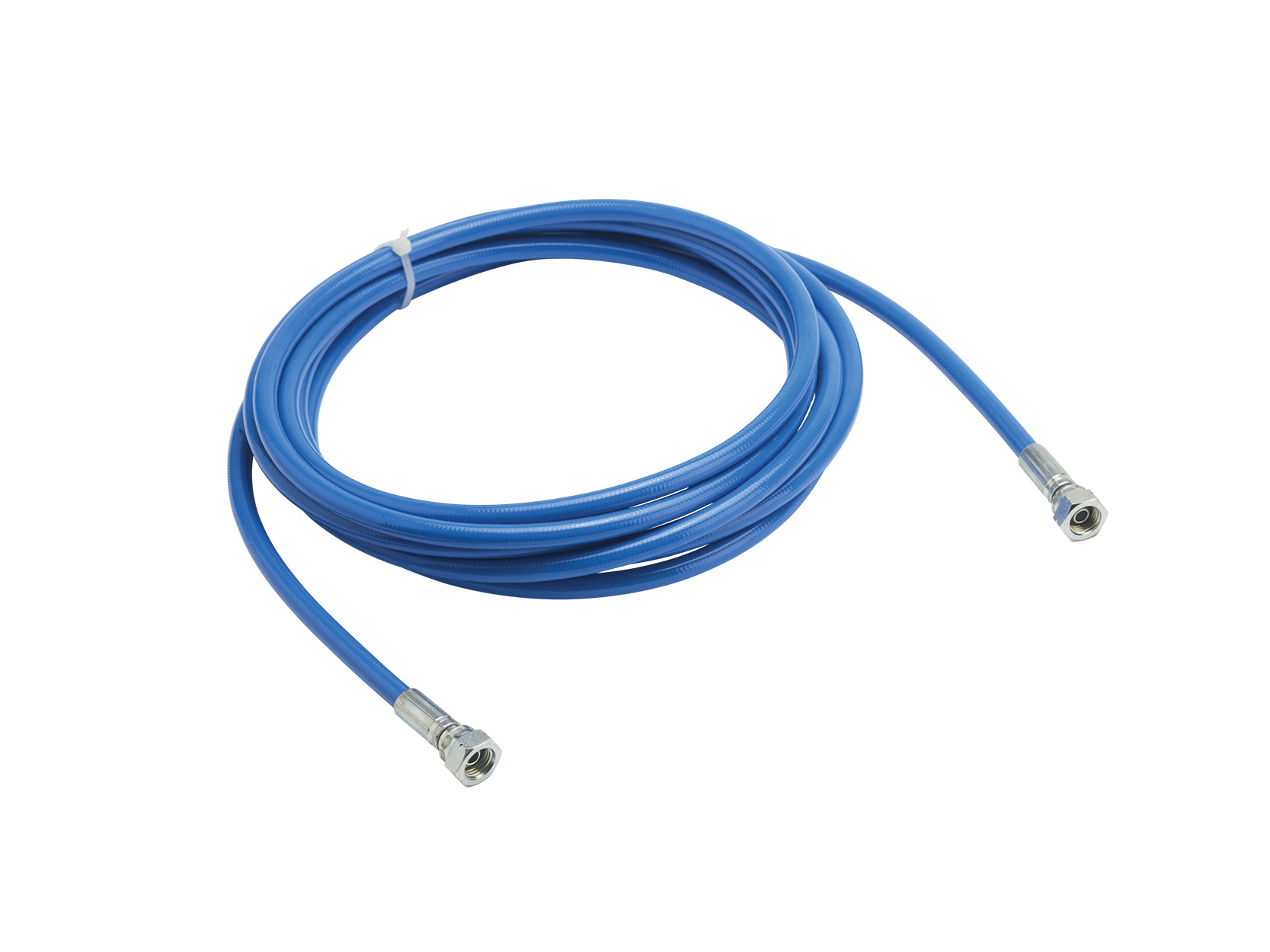

Double metal braid hoses with steel fittings
Double metal braid hoses with steel fittings
| CODE | DESCRIPTION | Ø I mm | Ø E mm | WORKING PRESSURE max. bar | RADIUS min. mm | WEIGHT g/m | REEL mt | FERRULE CODE |
| B206 | HP hose 1/4" | 6,4 | 13,5 | 500 | 40 | 286 | 150 | BB1091D |
| B210 | HP hose 3/8" | 9,7 | 17 | 500 | 60 | 408 | 150 | BB1092D |
| B212 | HP hose 1/2" | 13 | 22 | 210 | 75 | 582 | 150 | BB1093D |
| B219 | HP hose 3/4" | 19,2 | 27,5 | 160 | 150 | 765 | on request | BB1094D |
| B225 | HP hose 1" | 25,6 | 35 | 150 | 185 | 1026 | on request | BB1095D |
| CODE | DESCRIPTION | MT. | CONN. |
| 6140542 | HP2 hose 1/4" | 5 | 1/4" |
| 6147542 | HP2 hose 1/4" | 7,5 | 1/4" |
| 6141042 | HP2 hose 1/4" | 10 | 1/4" |
| 6141542 | HP2 hose 1/4" | 15 | 1/4" |
| 6142042 | HP2 hose 1/4" | 20 | 1/4" |
| 6140552 | HP2 hose 1/4" | 5 | 16x1,5mm |
| 6147552 | HP2 hose 1/4" | 7,5 | 16x1,5mm |
| 6141052 | HP2 hose 1/4" | 10 | 16x1,5mm |
| 6141552 | HP2 hose 1/4" | 15 | 16x1,5mm |
| 6142052 | HP2 hose 1/4" | 20 | 16x1,5mm |
| 6140582 | HP2 hose 1/4" | 5 | 3/8" |
| 6147582 | HP2 hose 1/4" | 7,5 | 3/8" |
| 6141082 | HP2 hose 1/4" | 10 | 3/8" |
| 6141582 | HP2 hose 1/4" | 15 | 3/8" |
| 6142082 | HP2 hose 1/4" | 20 | 3/8" |
| STEEL CONN. - Hose 1/4” - Press. max: 500 Bar (Psi 7250) | |||
| CODE | DESCRIPTION | MT. | CONN. |
| 6380552 | HP2 hose 3/8" | 16x1,5mm | |
| 6387552 | HP2 hose 3/8" | 16x1,5mm | |
| 6381052 | HP2 hose 3/8" | 16x1,5mm | |
| 6381552 | HP2 hose 3/8" | 16x1,5mm | |
| 6382052 | HP2 hose 3/8" | 16x1,5mm | |
| 6380582 | HP2 hose 3/8" | 3/8" | |
| 6387582 | HP2 hose 3/8" | 3/8" | |
| 6381082 | HP2 hose 3/8" | 3/8" | |
| 6381582 | HP2 hose 3/8" | 3/8" | |
| 6382082 | HP2 hose 3/8" | 3/8" | |
| 6383082 | HP2 hose 3/8" | 3/8" | |
| STEEL CONN. - Hose 3/8” - Press. max: 500 Bar (Psi 7250) | |||
Technische Spezifikationen
Technical-constructive features:
inner core in polyamide, reinforcement in double high tensile steel braid and exterior covering in antiabrasion polyurethane, micro perforated on request for the conduction of air and compatible gases.
Application:
these hoses have been created for the high pressure conduction of polyols, solvents and paints and compatible gases,
in chemically aggressive environments
Working temperature:
from -40° C to +100° C From -40° F to +212° F
Max. working temperature of air, water and water-based fluids is + 95° C (+203° F).
Vacuum rating:
0.93 bar; 700 mm Hg
Specifications:
meet or exceed SAE 100R2 - SAE J517-100R2 standards.
