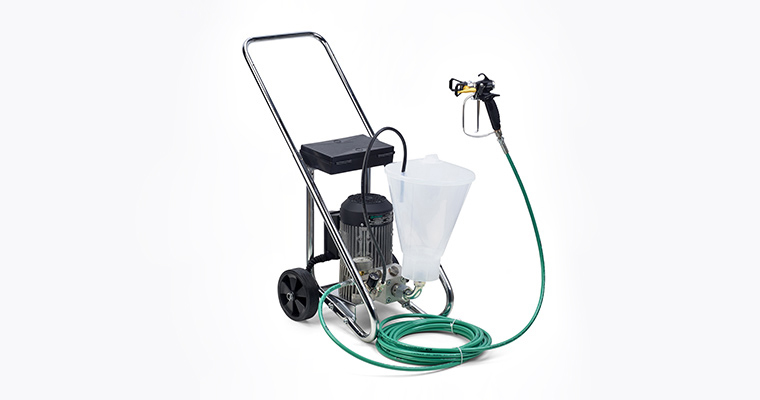

ARES 4200

Electric Diaphragm Pump

Electric diaphragm pump for professional high-pressure airless paint spraying, suitable for the light construction sector for medium-large surfaces with medium-low viscosity mural products. Tsunami electric pump, available in three models, can be used with enamels, lacquers, base coats and varnishes, medium and low viscosity water-based paints. Available with vertical or horizontal engine.

CODE	DESCRIPTION
TKG42C	ARES 4200 Electric airless diaphragm pump volt 230/Hz50 single phase and orizontal C/ Trolley - Manometer - HP hose 7,5m - RST1 spray gun - FM6 tip guard - Reversible FM6 tip - Gravity tank

TKG42E	ARES 4200 Electric airless diaphragm pump volt 230/ Hz50 single phase and orizontal C/ Trolley - Manometer - HP hose 7,5m - RST1 spray gun - FM6 tip guard - Reversible FM6 tip - Complete suction system

TKG42B	ARES 4200 Electric airless diaphragm pump volt 230/ Hz50 single phase and orizontal C/ Trolley - Manometer - Gravity tank

TKG42F	ARES 4200 Electric airless diaphragm pump volt 230/ Hz50 single phase and orizontal C/ Trolley - Manometer - Complete suction system

TKG42D	ARES 4200 Electric airless diaphragm pump volt 230/ Hz50 single phase and vertical C/ Trolley - Manometer - Gravity tank

TKG42A	ARES 4200 Electric airless diaphragm pump volt 230/Hz50 single phase and vertical C/ Trolley - Manometer - Complete suction system

Technical specifications

Motor | Volt:  230 Volt/ 50 Hz
Variant: 380 Volt/ 110 Volt
Power:  0,74 Kw
Max. Delivery Free Flow:  ltr/min 4,0
Max. Tip: 1 Gun  0,021
Max. Tip: 2 Guns  0,013
Max. Tip: 3 Guns ------
Max. working outlet pressure: Bar (psi) 200 (2900)
Max length HP hose: mt   60
Max length HP hose (elevation):  mt 60
Weight: Kg. 26
Material inlet fitting size: M 36x2 mm
Material outlet fitting size: M 16x1,5mm

Application

It can be used with enamels, lacquers, base coats and varnishes, medium and low viscosity water-based paints.
The Tsunami/Ares pumps are suitable for low viscosity water-based paints and mural injection resins.
